6 Gallon Suburban Advantage Tank Water Heater with Direct Spark Ignition

5138A/E     SW6D

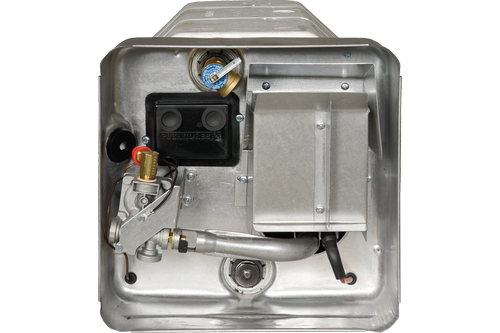

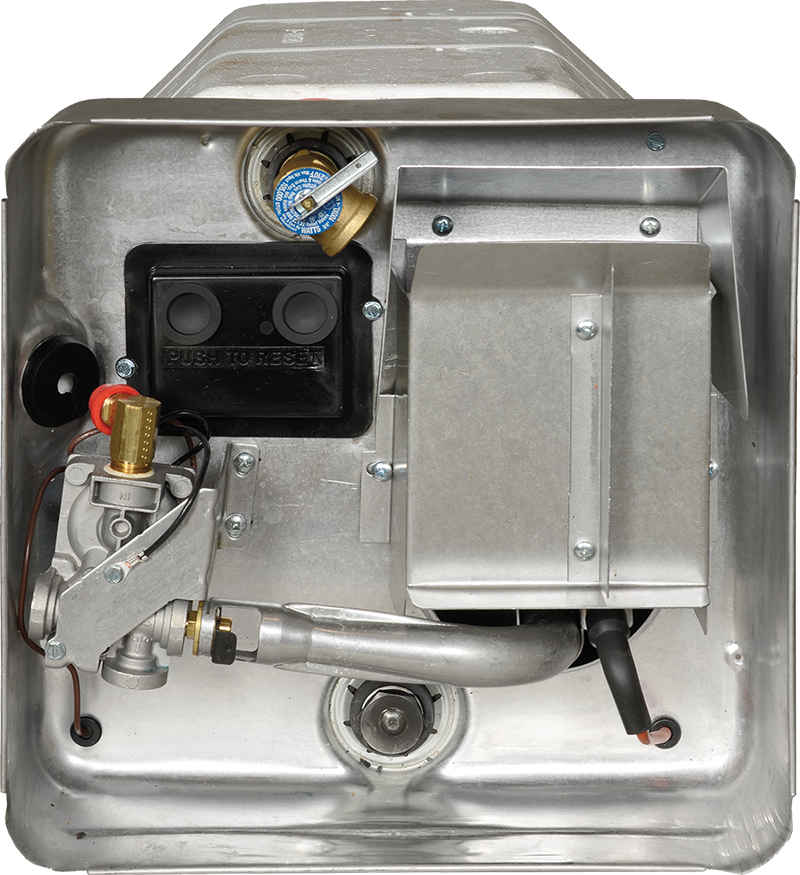

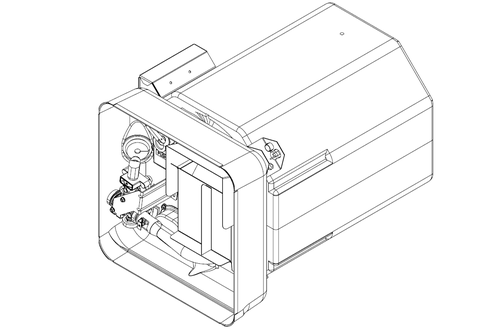

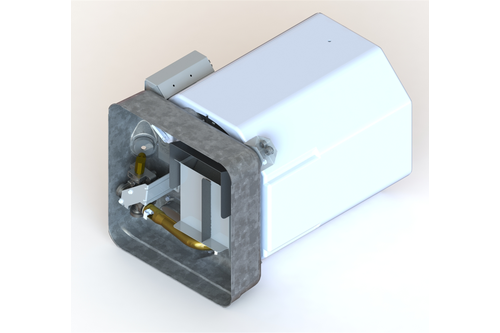

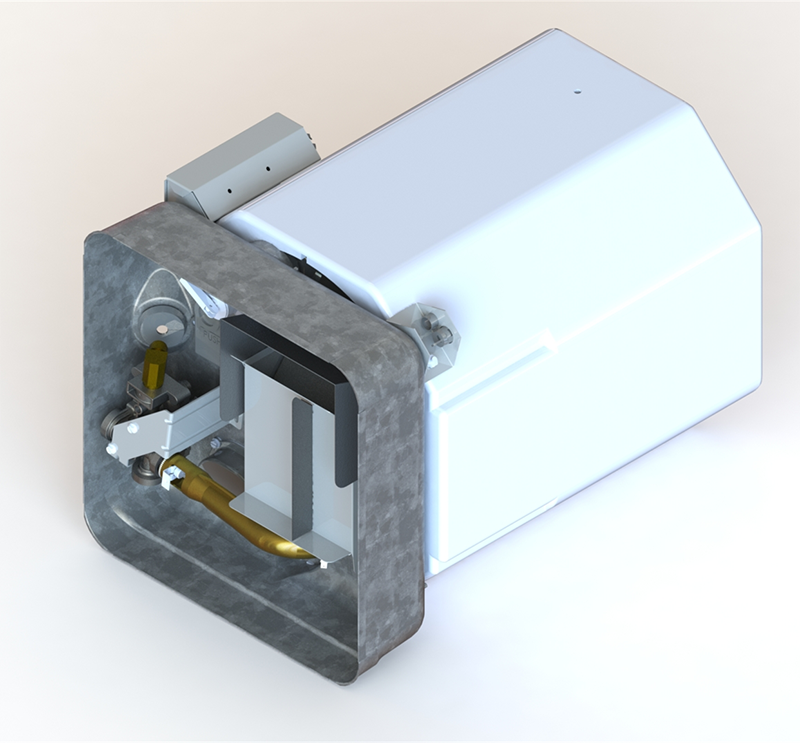

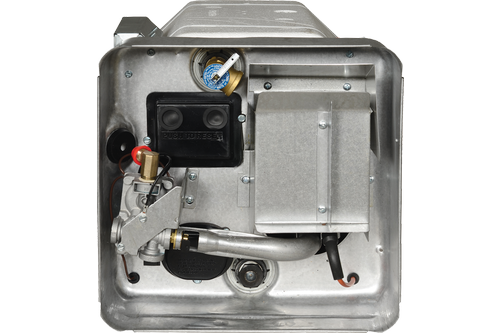

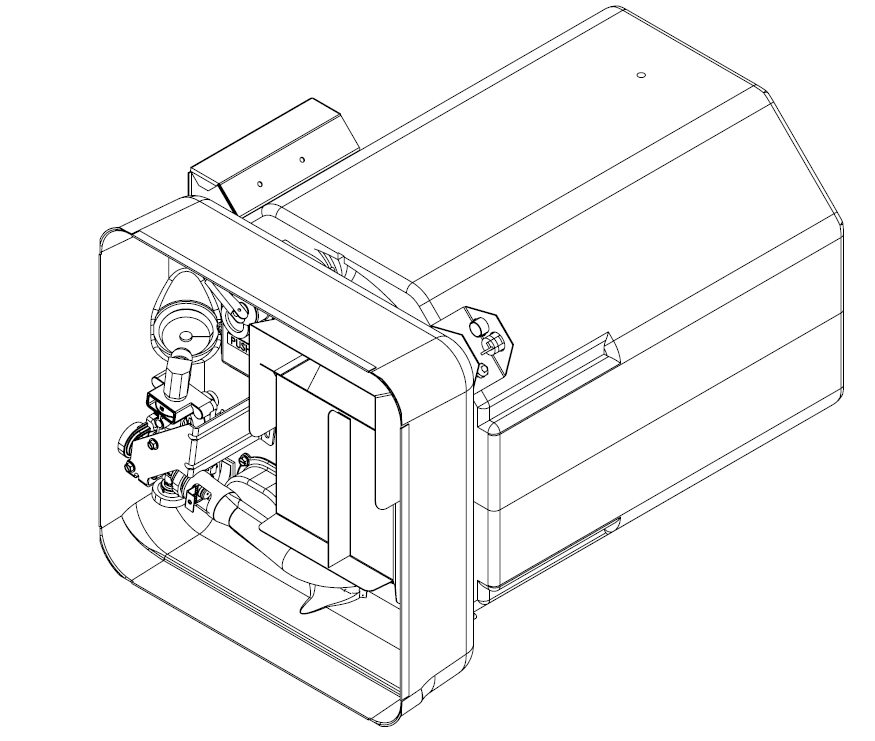

Suburban Advantage 6 Gallon Tank Water Heater

Features

  • Durable porcelain lined steel tank is built just like longer lasting residential tank water heaters
  • Replaceable anode rod protects against tank corrosion and doubles as a drain

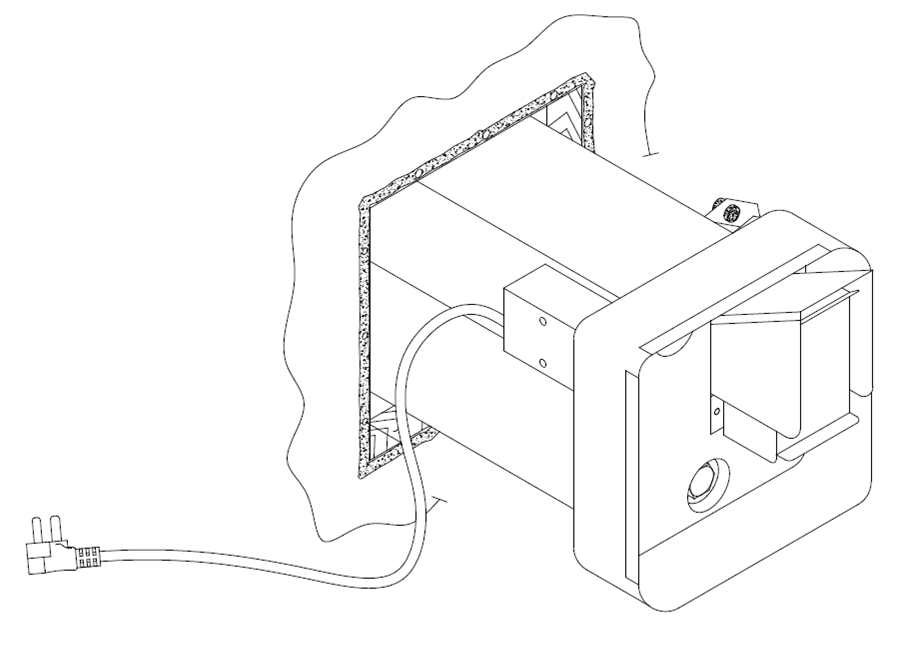

  • Optional electric element allows you to take advantage of campsite or generator power to heat water
  • Suburban exclusive flue tube slows combustion process to transfer more heat to water in tank
  • Repositionable module board provides installation flexibility
  • Direct Spark Ignition (DSI) that directly lights the main burner, avoiding the need for a pilot
  • 2 year limited warranty with the tank itself backed by a 3 year tank limited warranty

Specifications

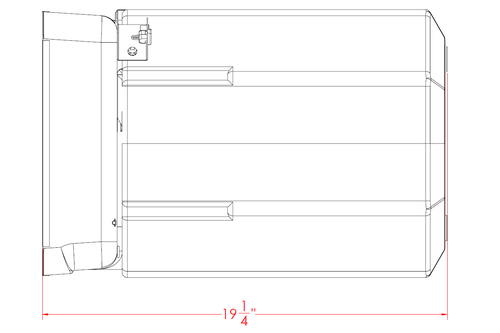

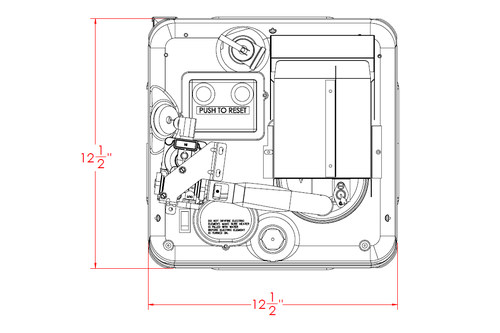

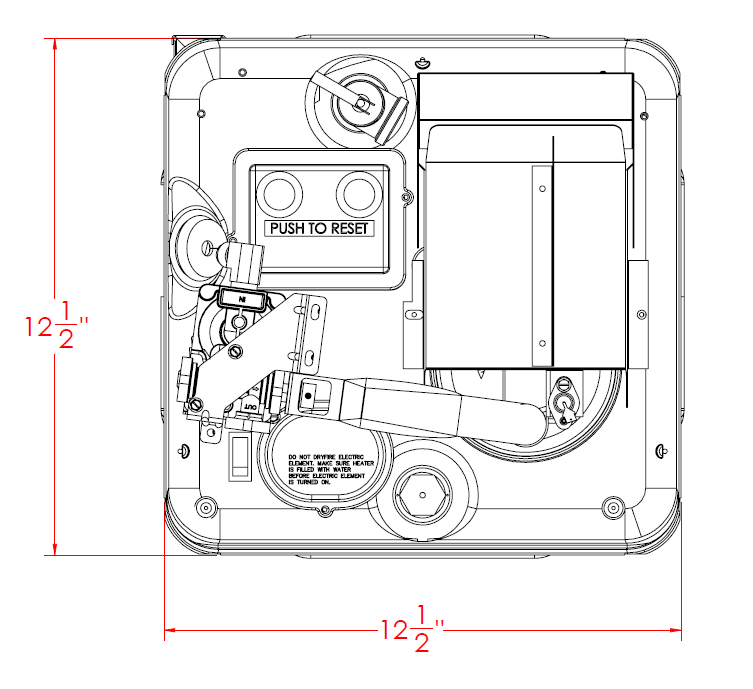

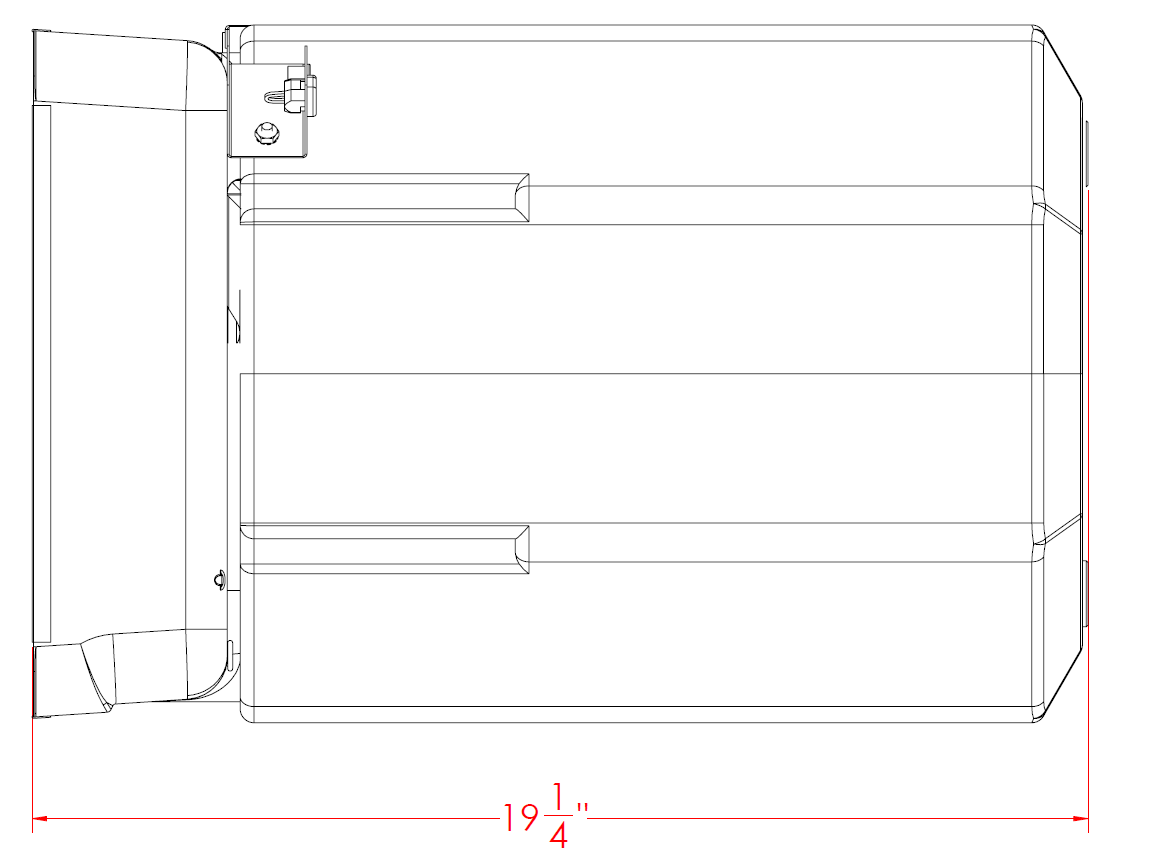

Dimensions12.69" x 12.69" x 19.19"

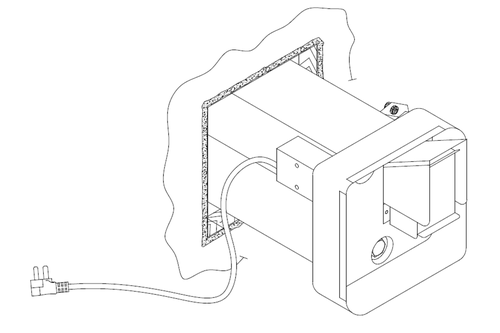

Cutout Dimensions12.75" x 12.75" x 19.19"
Available Door ColorsArctic White, Polar White, Black
Available Door TypesRadius Corner, Flush
Packaging Type Single-Pack (A)
Bulk 5/Per (E)
BTU/h Inputs12,000
Optional Electric Element Input1,440
Recovery Rate - Electric Only (Gallons/Hour)6.1
Recovery Rate - Gas Only (Gallons/Hour)10.1
Warranty2 Year Limited Warranty With a 3 Year Limited Tank Warranty
Water Heating


Documents



Please Note: Suburban Gas Appliances are to be installed and/or serviced by a qualified service technician.
