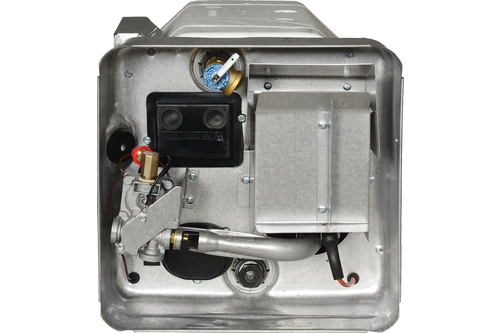

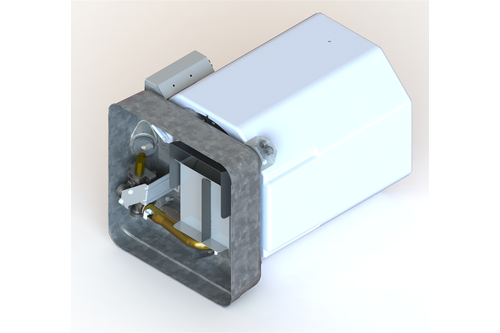

10 Gallon Suburban Advantage Tank Water Heater with Direct Spark Ignition

5142A/F     SW10D

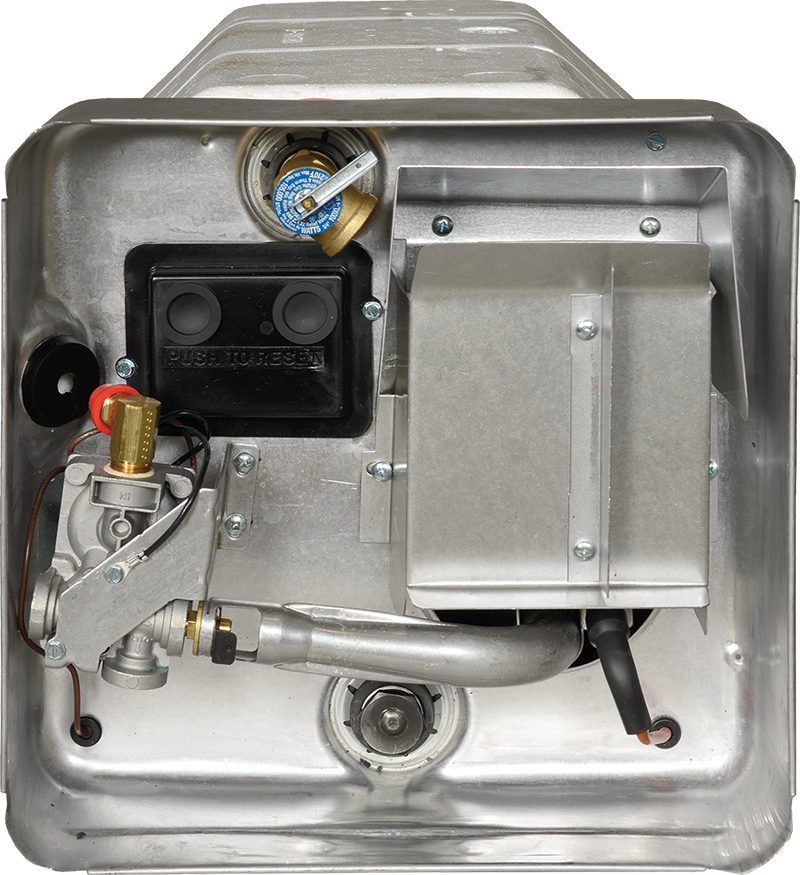

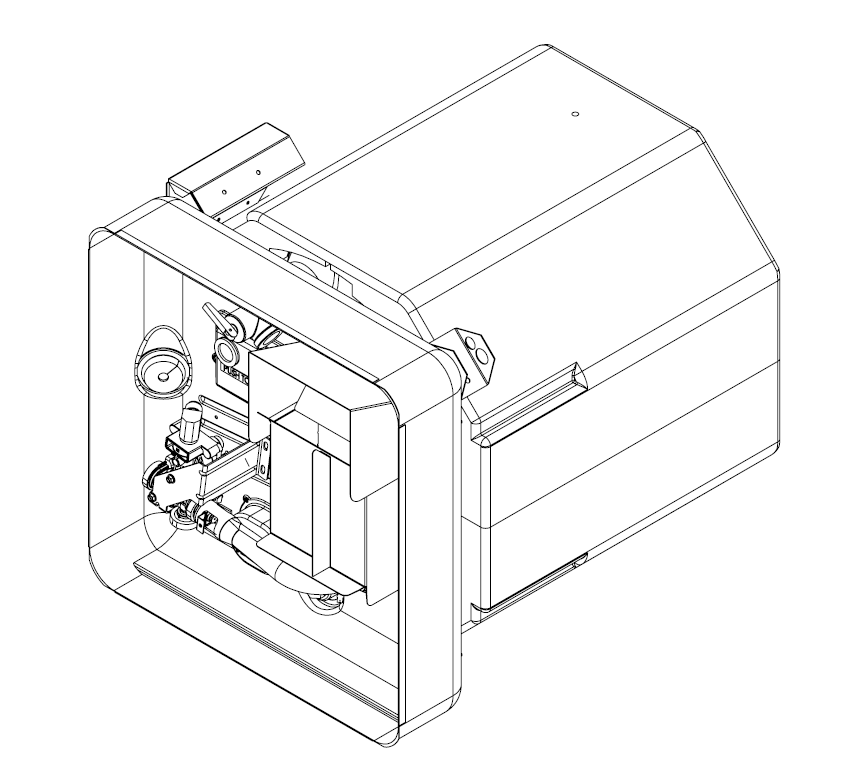

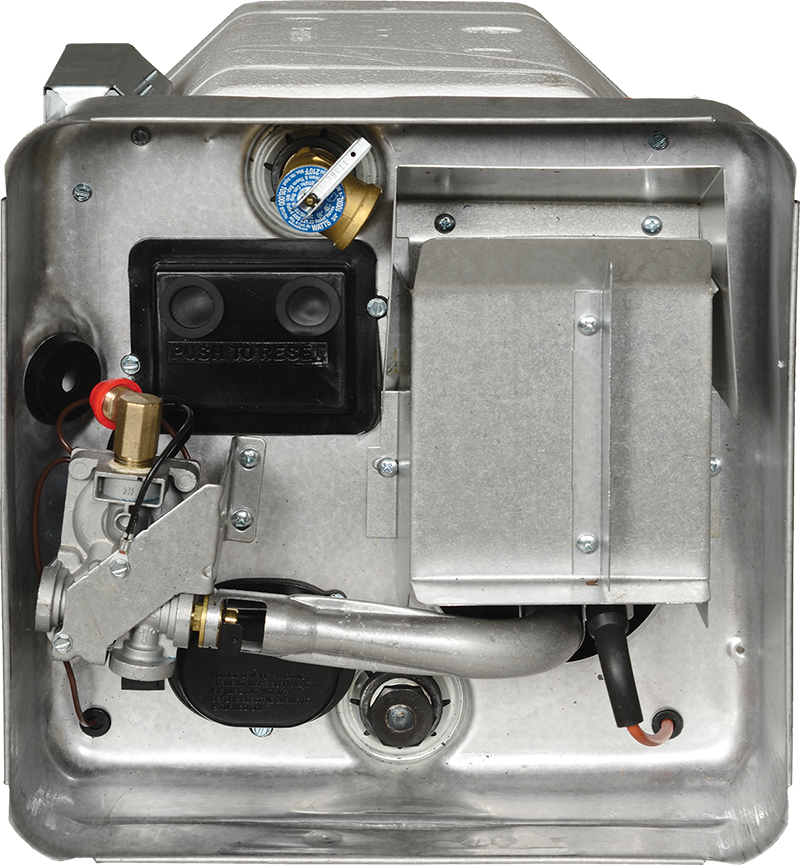

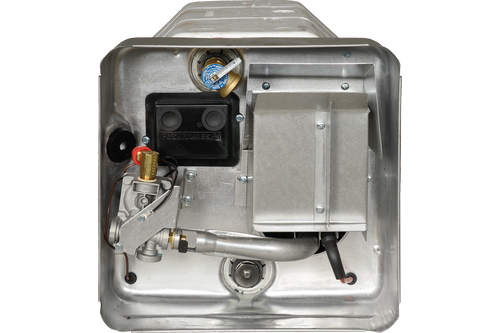

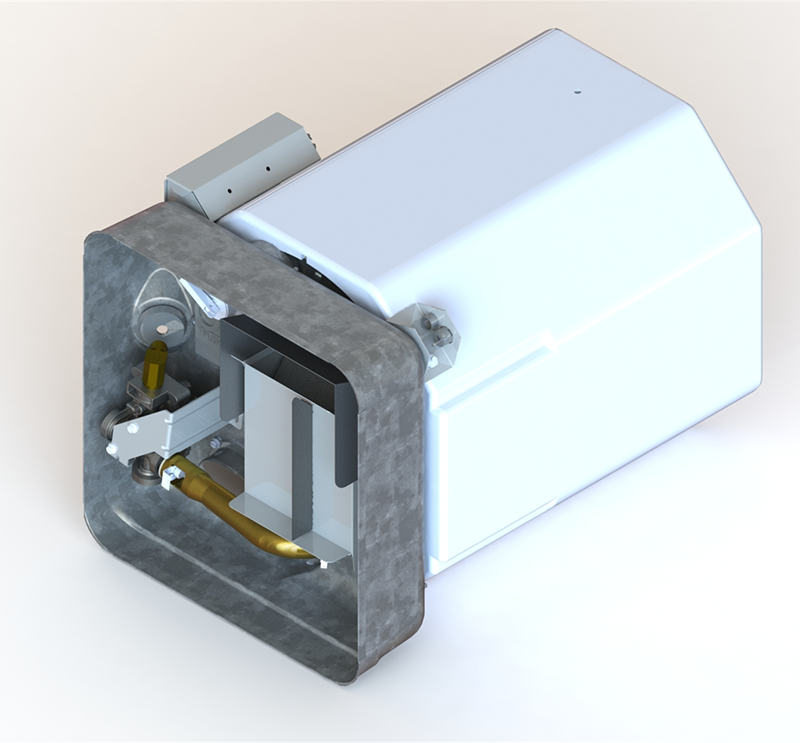

Suburban Advantage 10 Gallon Tank Water Heater

Features

  • Durable porcelain lined steel tank is built just like longer lasting residential tank water heaters
  • Replaceable anode rod protects against tank corrosion and doubles as a drain
  • Optional electric element allows you to take advantage of campsite or generator power to heat water
  • Suburban exclusive flue tube slows combustion process to transfer more heat to water in tank
  • Repositionable module board provides installation flexibility
  • Direct Spark Ignition (DSI) that directly lights the main burner, avoiding the need for a pilot
  • 2 year limited warranty with the tank itself backed by a 3 year tank limited warranty

Specifications

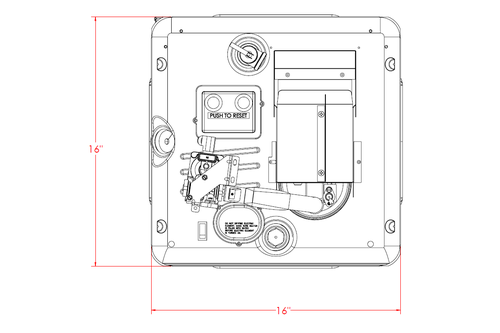

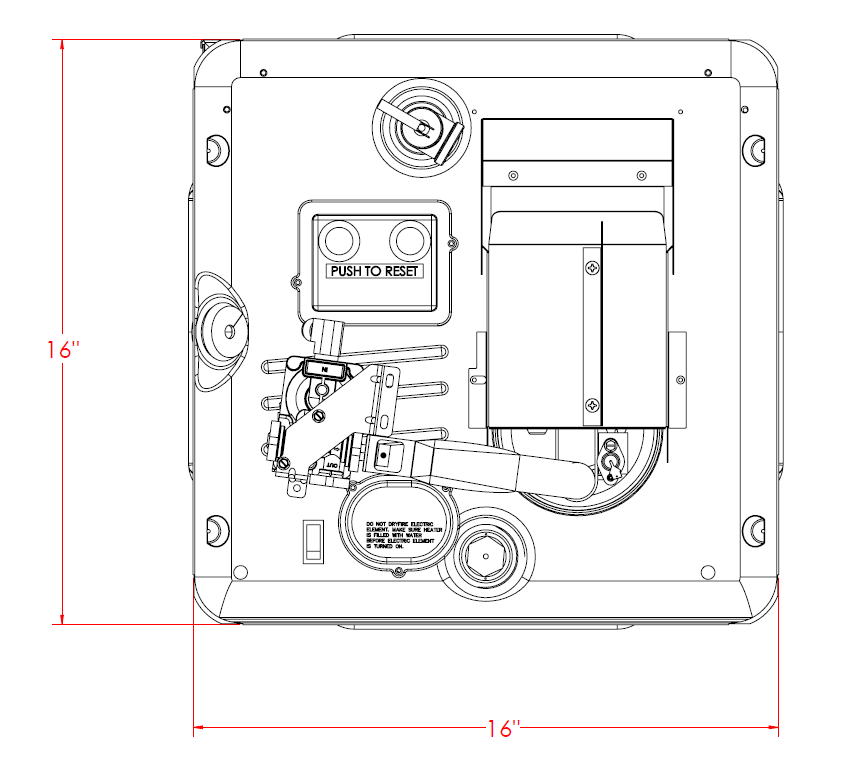

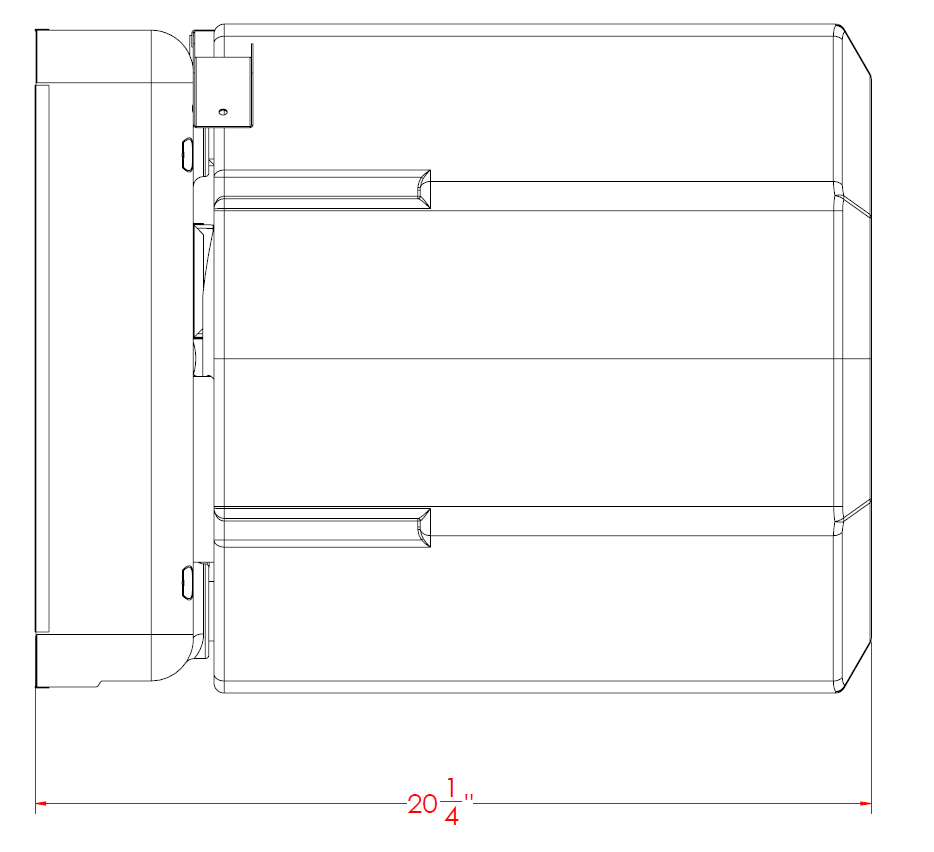

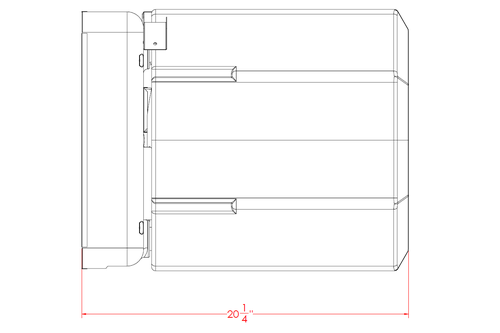

Dimensions16.22" x 16.22" x 20.50"

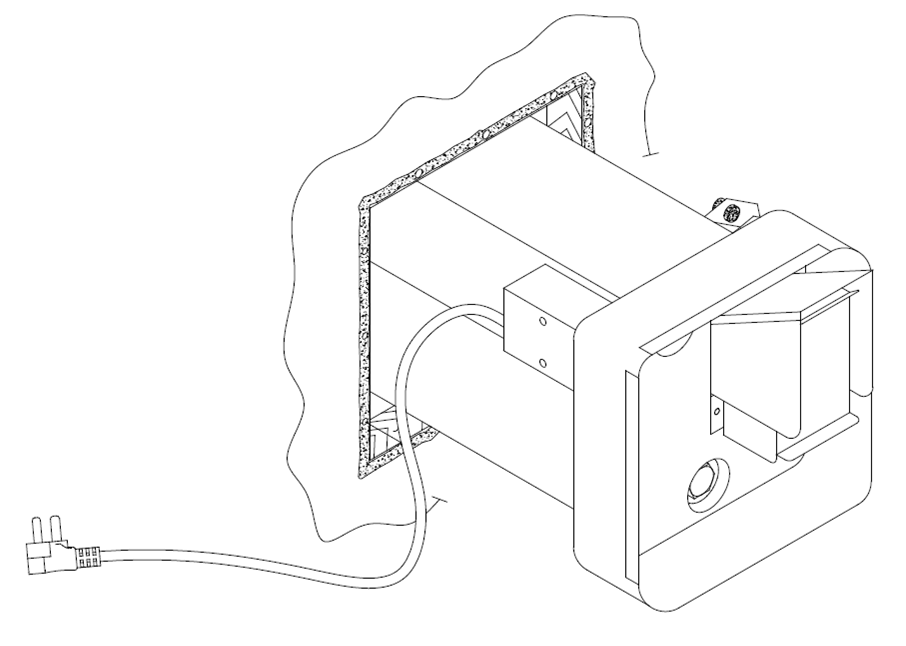

Cutout Dimensions16.38" x 16.38" x 20.50"
Available Door ColorsArctic White, Polar White, Black
Available Door TypesFlush
Packaging Type Single-Pack (A)
Bulk 6/Per (F)
BTU/h Inputs12,000
Optional Electric Element Input1,440
Recovery Rate - Electric Only (Gallons/Hour)6.1
Recovery Rate - Gas Only (Gallons/Hour)10.1
Warranty2 Year Limited Warranty With a 3 Year Limited Tank Warranty
Water Heating


Documents



Please Note: Suburban Gas Appliances are to be installed and/or serviced by a qualified service technician.

If you are not a qualified service technician or an approved Suburban Service Agency, please click here to locate your nearest service center.
