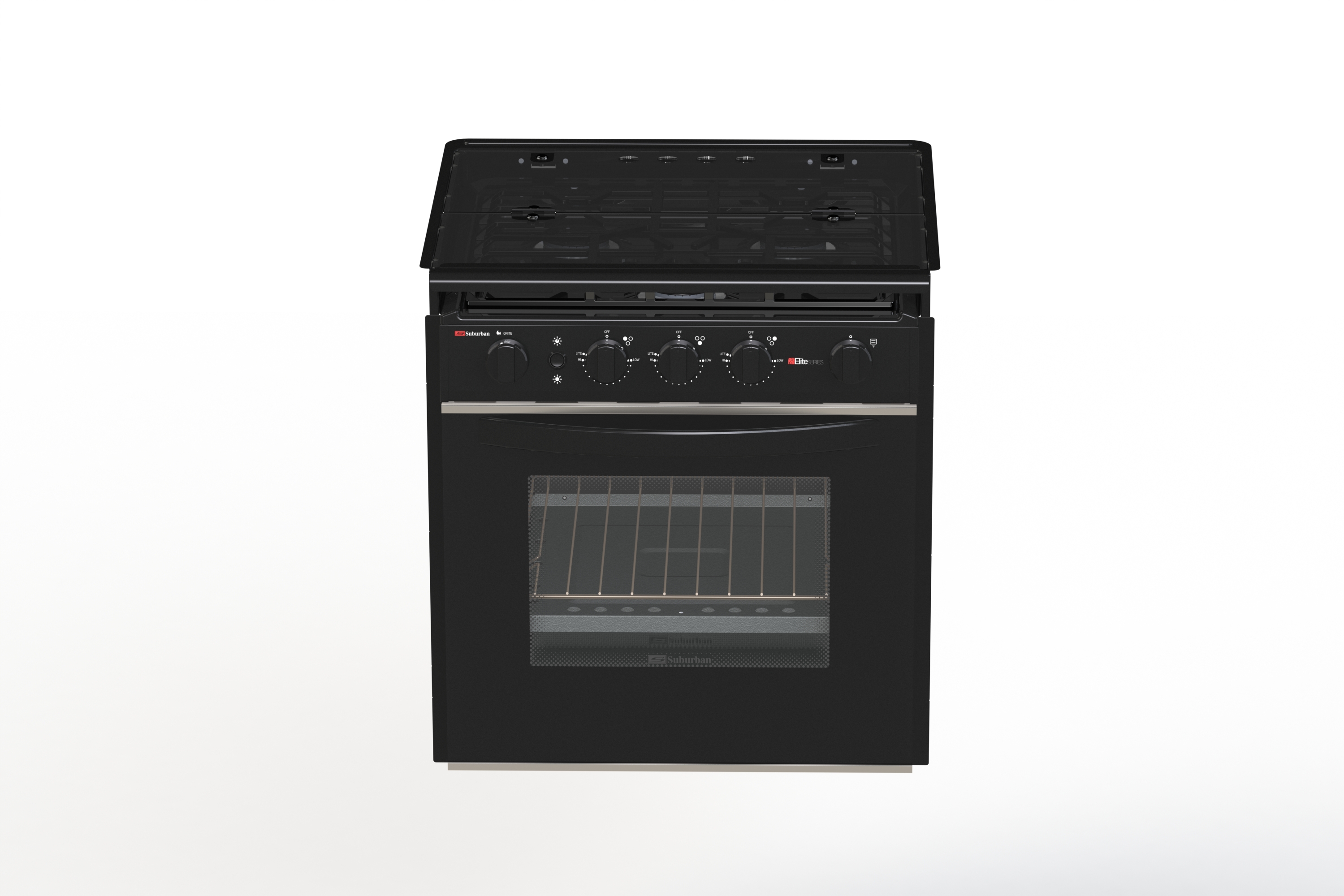

Suburban Elite Series Plus 22" Range

3630A     SRNSQB3S2QAG3EC

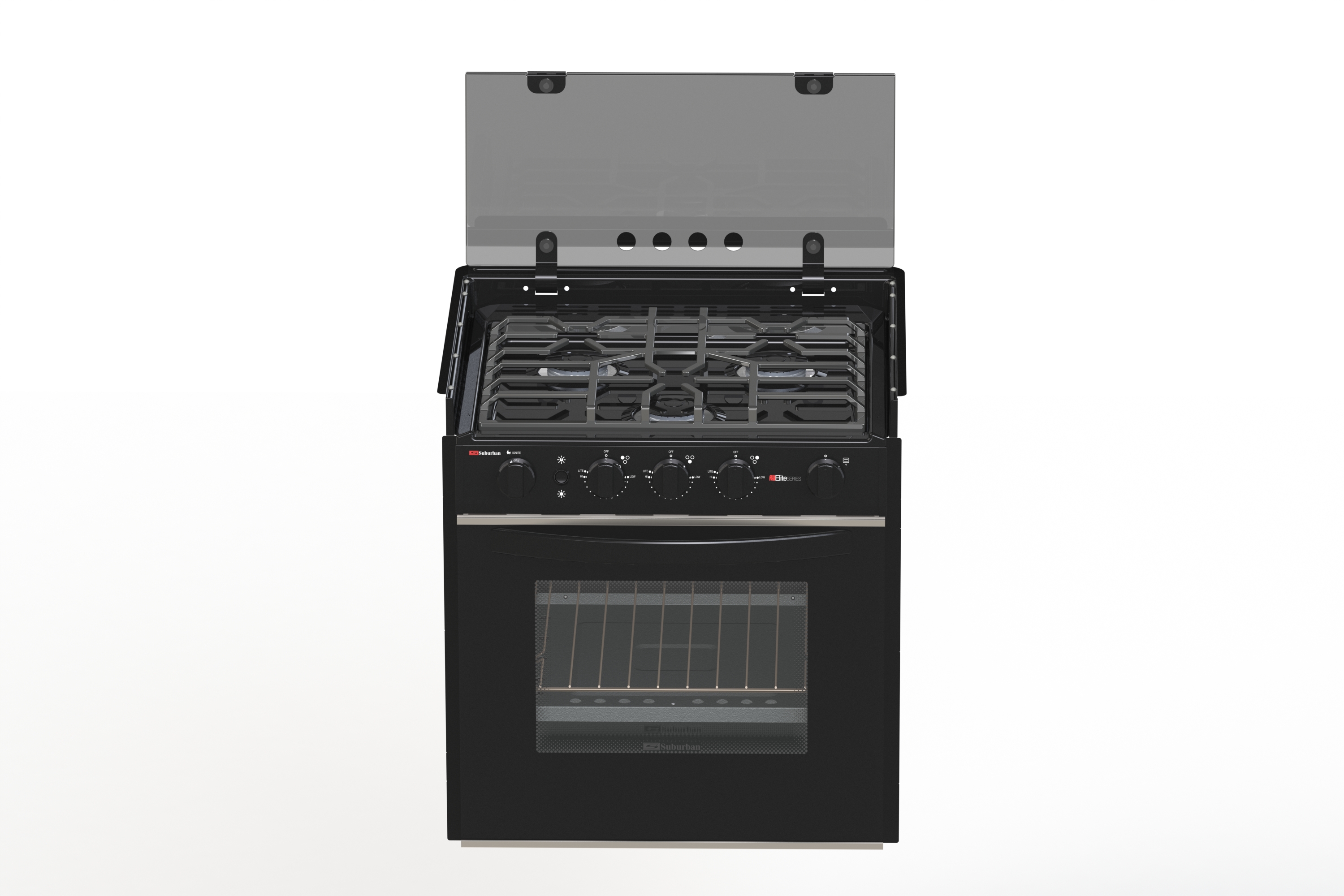

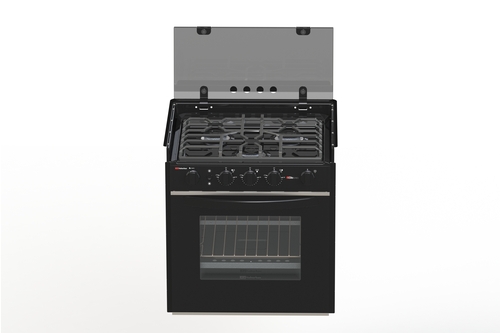

Suburban Elite Series Plus 22" Range - Features include 3 Burners, Piezo Ignition, Stainless Control Panel, Glass Door with Backlit Knobs/Oven Light, Built-in Flush Mount Glass Cover

Features

  • High-efficiency, well insulated oven heats to 500° F and features large broiler areas
  • Porcelain oven and broiler pan surfaces are smooth and rounded for easy cleaning
  • Sturdy, easy-sliding oven rack with multiple positions
  • Match-free piezo ignition creates a spark to light the cooktop burners
  • Smooth, infinitely variable flame adjusts from a gentle simmer to high heat for faster cooking

Specifications


Dimensions23.07" x 23.84" x 21.57"
Cutout (D x W x H)20 3/8" x 22 ¾" x 18 1/4"
ColorBlack
BTU/h InputsFront: 9,000 Rear right: 6,500 Rear left: 6,500 Oven: 7,100"
Burner TypeConventional
Number of Burners3
Ignition TypePiezo
Size22"
Available Door ColorsAll-Glass
Available Door TypesMetal Radius- Black
Control PanelBlack
HandleMetal Radius- Black
KnobsBlack
Blue Backlit Oven KnobsYes
Broiler FunctionYes
GrateCast
Oven LightYes
Racks1
Rack Positions3
Warranty2 Year Limited Warranty


Product DescriptionPart No.

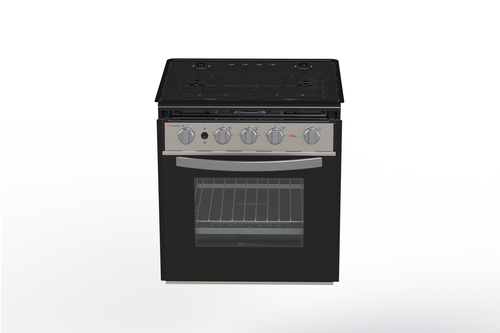

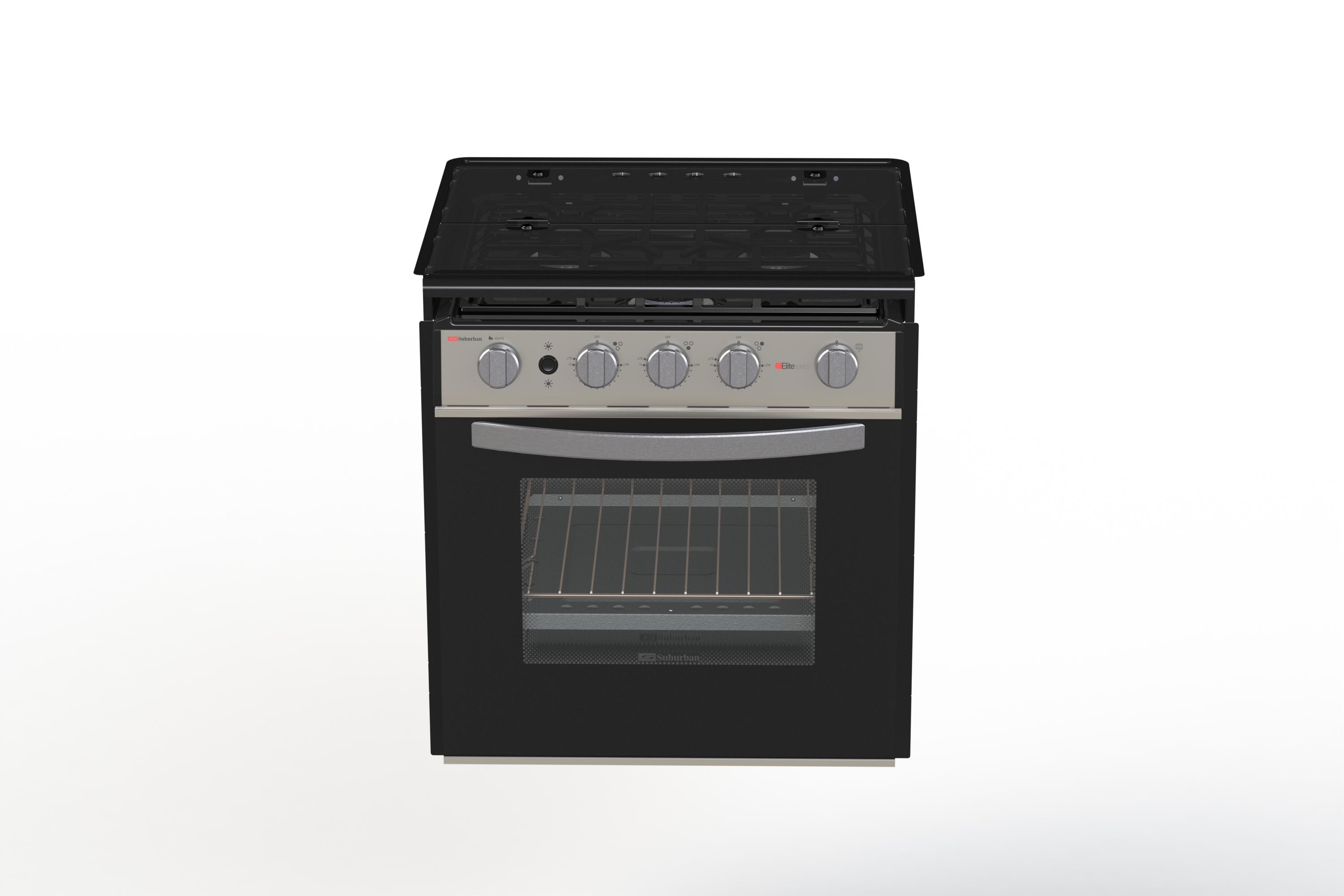

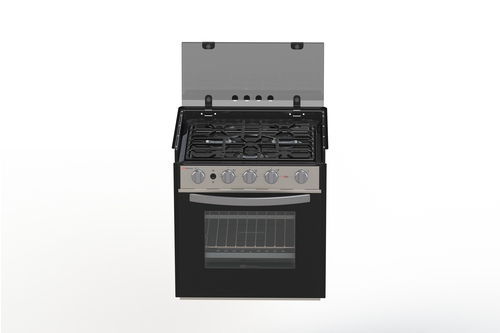

Suburban Elite Series Plus 22" Range, Stainless Panel 3636A



Cooking Appliances


Documents



Please Note: Suburban Gas Appliances are to be installed and/or serviced by a qualified service technician.

If you are not a qualified service technician or an approved Suburban Service Agency, please click here to locate your nearest service center.
